INSTRUMENTS

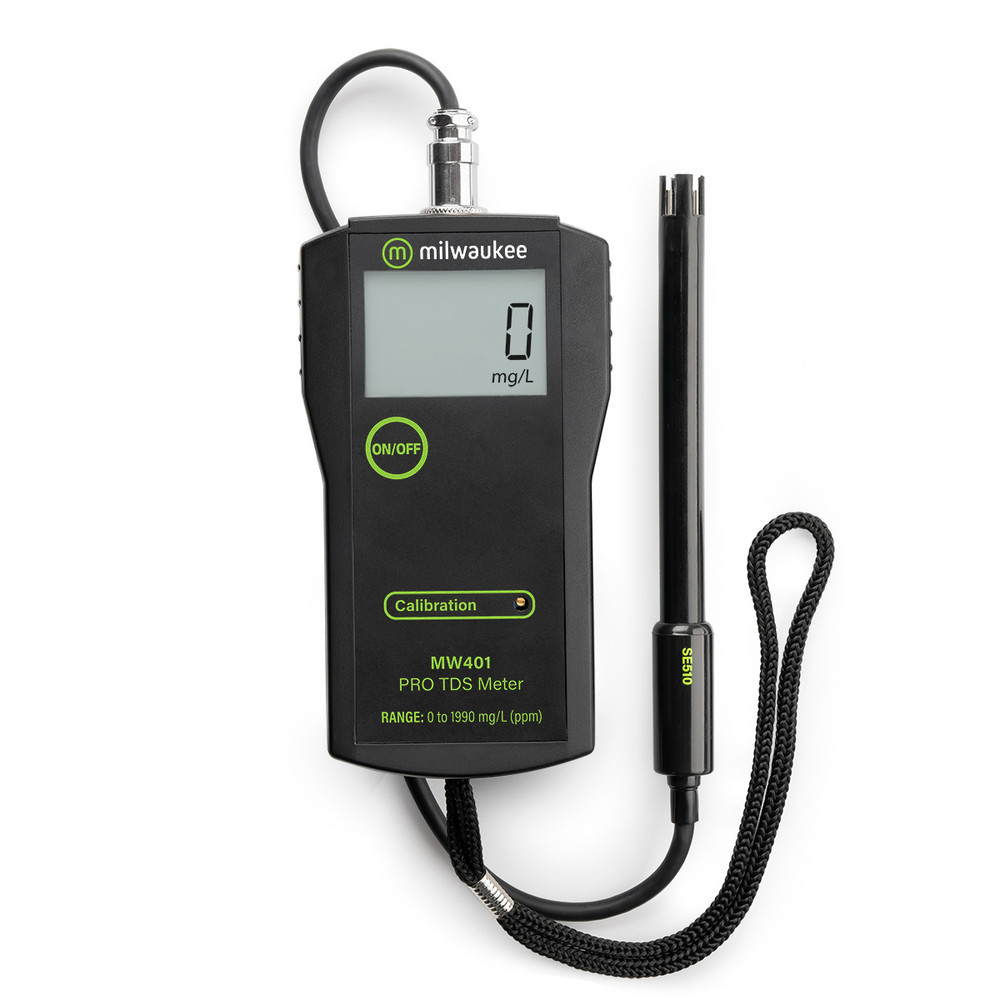

Code : MW401 Pro

MW401 PRO Low Range Total Dissolved Solids Meter

MW401 PRO Low Range Total Dissolved Solids Meter MW401 is a Portable Low Range Total Dissolved Solids (TDS) Meter with Automatic Temperature Compensation. This instrument has been designed for aquariums, aquaculture, labs, and water conditioning applications to meet the needs for equipment suited from hobbist to professional.  It is also a great meter for food labs, and water treatment applications. TDS testing provides a method to optimize chemical applications and minimize operational cost. In aquarium and aquaculture applications, high concentrations of solids (TDS) can reduce clarity in water can decrease photosynthesis in aquatic plants.  In water conditioning, a high (TDS) level can affect the clarity and taste of potable drinking water.  The MW401 has a range of 0 to 1990 mg/L (ppm)  with a 10 mg/L (ppm) resolution. This (TDS) meter is supplied complete with conductivity probe with 1 m (3.3') cable and calibration solution. DESIGN FEATURES 0 to 1999 mg/l (ppm) range. Fast, easy-to-read results with large digital LCD readout. Supplied with conductivity probe attached to a 3 foot cable. Accuracy to ±2% FS @ 25°C. Lightweight and portable. 300 hours of battery life with continuous use (battery included). SE510 Conductivity probe included. Starter Calibration Solution MI0032B, 1382 ppm (included). SPECIFICATIONS Range: 0 to 1990 mg/L (ppm) Resolution: 1 mg/L (ppm) Accuracy: ±2% Full Scale @ 25ºC Conversion factor: 0.5 Temperature Compensation: Automatic, from 5 to 50ºC / 41F to 122F Conductivity Probe: SE510 (included) Starter Calibration Solution MI0032B , 1382 (ppm) (included) Environment: 0 to 50°C / 32 to 122°F; max RH 95% Battery Type: 1 x 9V alkaline (included) Battery Life: Approx. 300 hours of continuous use Meter Dimensions: 5.6 x 3.1 x 1.25 inches (143 x 80 x 32 mm) Meter Weight: 0.5 lbs (0.23 k g) Packaged Dimensions: 8.35 x 5.71 x 2.74 inches (212 x 145 x 67 mm) Packaged Weight: 0.97 lbs (0.44 k g)

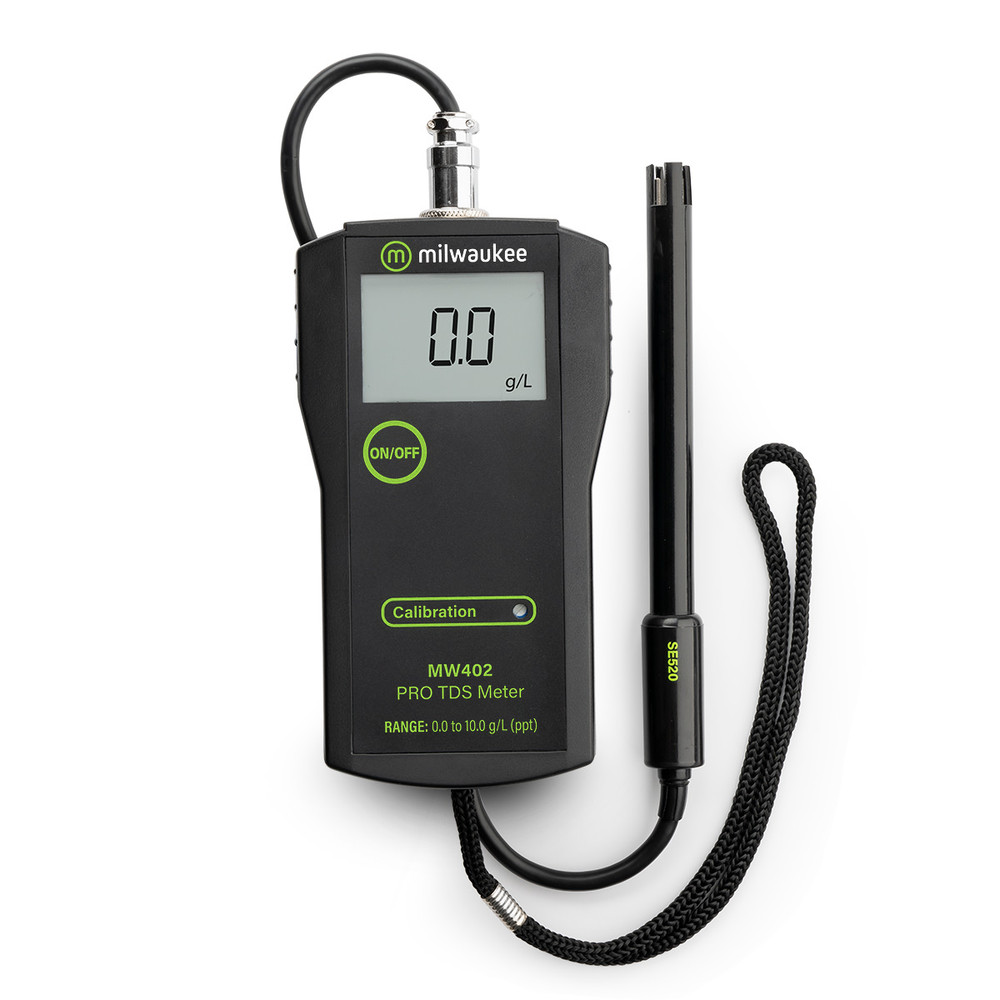

Code : MW402 Pro

MW402 PRO High Range Total Dissolved Solids Meter

MW402 PRO High Range Total Dissolved Solids Meter MW402 is a Portable Conductivity High Range (TDS) Meter with Automatic Temperature Compensation.  This instrument has been designed for aquariums, aquaculture, labs, and water conditioning applications to meet the needs for equipment suited from hobbist to professional.  It is also a great meter for food labs, and water treatment applications. TDS testing provides a method to optimize chemical applications and minimize operational cost. In aquarium and aquaculture applications, high concentrations of solids (TDS) can reduce clarity in water can decrease photosynthesis in aquatic plants.  In water conditioning, a high (TDS) level can affect the clarity and taste of potable drinking water.  The MW402 has a range of 0.0 to 10.0 g/L (ppt)  with a 0.1 g/L (ppt) resolution. This TDS meter is supplied complete with conductivity probe with 1 m (3.3') cable and calibration solution. DESIGN FEATURES 0.0 to 10.0 g/l (ppt) range. Fast, easy-to-read results with large digital LCD readout. Supplied with conductivity probe attached to a 3 foot cable. Accuracy to ±2% FS @ 25°C. Lightweight and portable. 300 hours of battery life with continuous use (battery included). SE520 Conductivity Probe included. Starter Calibration solution MI0038B (6.44 ppt) included. SPECIFICATIONS Range: 0.0 to 10.0 g/L (ppt) Resolution: 0.1 g/L (ppt) Accuracy: ±2% Full Scale @ 25ºC Conversion factor 0.5 Temperature Compensation: Automatic, from 5 to 50ºC / 41F to 122F Conductivity Probe: SE520 (included) Conductivity Starter Calibration MI0038B (6.44 ppt) (included) Environment: 0 to 50°C / 32 to 122°F; max RH 95% Battery Type: 1 x 9V alkaline (included) Battery Life: Approx. 300 hours of continuous use Meter Dimensions: 5.6 x 3.1 x 1.25 inches (143 x 80 x 32 mm) Meter Weight: 0.5 lbs (0.23 k g) Packaged Dimensions: 8.35 x 5.71 x 2.74 inches (212 x 145 x 67 mm) Packaged Weight: 0.97 lbs (0.44 k g)
  • Download

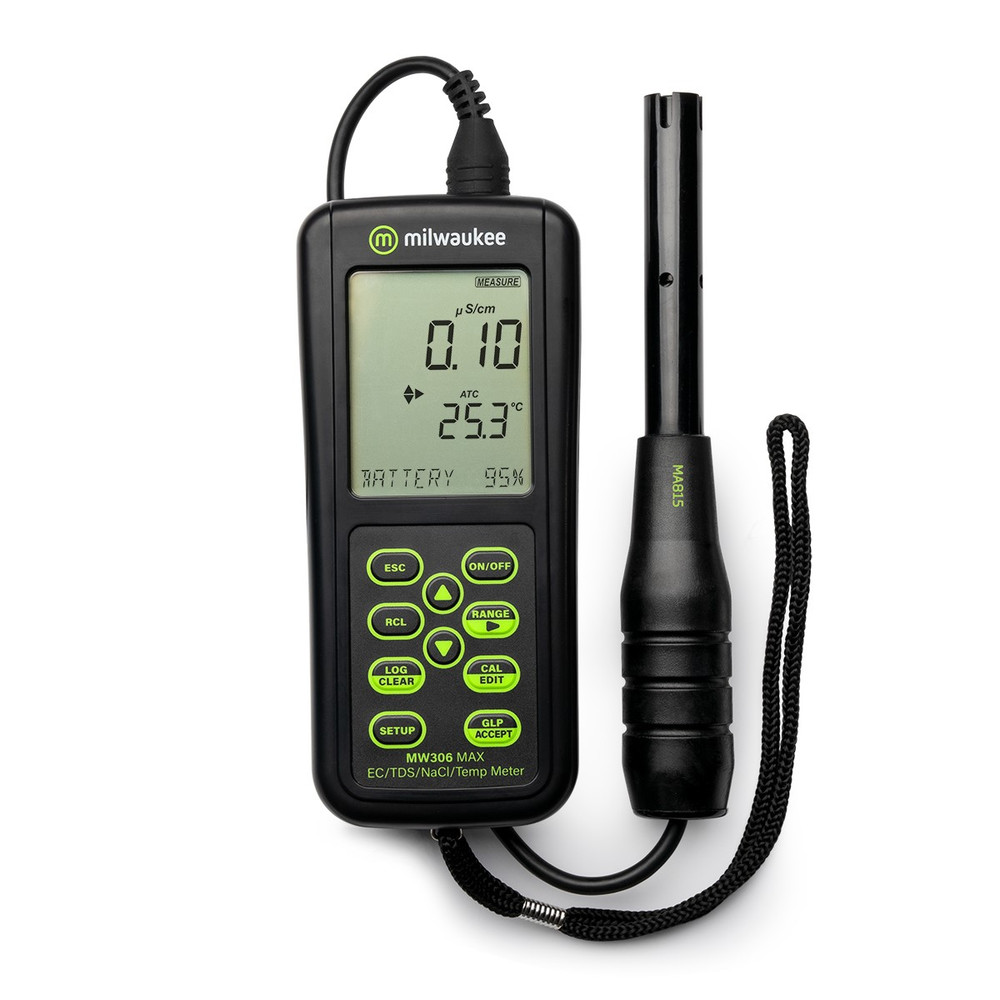

Code : MW306 Max

MW306 MAX Waterproof EC/TDS/NaCl/Temp Logging Portable Meter

MW306 MAX Waterproof EC/TDS/NaCl/Temp Logging Portable Meter MW306 4-in-1 PRO EC/TDS/NaCl/Temp. Logging Portable Meter has won fans around the world with its reliable, fast and simple operation as well as its toughness and IP67 Waterproof rating. Accurate to ± 1% EC/TDS & Salinity with automatic or manual temperature compensation, and built in GLP key. Ideal for use by hydroponics, horticulture, labs, food processing, water treatment and many other applications with challenging EC/TDS/NaCL/Temp. measurement needs.   SPECIFICATIONS EC Range: 0.00 to 29.99 uS/cm / 3.0 to 29.9 uS/cm EC Range: 30.0 to 299.9 uS/cm / 300 to 2999 uS/cm EC Range: 3.00 to 29.99 mS/cm / 30.0 to 200.0 mS/cm / up to 500.0 mS/cm, absolute conductivity* TDS Range: 0.00 to 14.99 ppm (mg/L) TDS Range: 15.0 to 149.9 ppm (mg/L) / 150 to 1499 ppm (mg/L) TDS Range: 1.50 to 14.99 g/L / 15.0 to 100.0 g/l / up to 400.0 g/L absolute TDS* (with 0.80 factor) Salinity Range: 0.0 to 400.0 %NaCl / 2.00 to 42.00 PSU Salinity Range: 0.00 to 80.00 g/L Temp. Range: -20.0 to 120.00°C (-4.0 to 248.0°F) EC Resolution: 0.01 uS/cm / 0.1 uS/cm / 1 uS/cm EC Resolution: 0.01 mS/cm / 0.1 mS/cm TDS Resolution: 0.01 ppm / 0.1 ppm / 1 ppm TDS Resolution: 0.01 g/L / 0.1 g/L Salinity Resolution: 0.1 % NaCl / 0.01 PSU / 0.01 g/L Temperature Resolution: 0.1°C / 0.1°F Accuracy @ 25°C / 77°F EC: ± 1% of reading / ±0.05 uS/cm or 1 digit, whichever is greater TDS: ±1 % of reading / ±0.03 ppm or 1 digit, whichever is greater Salinity: ±1 % of reading Temperature: ±0.5°C (±0.9°F) Calibration EC/TDS: single cell factor calibration, 6 standards: 84 uS/cm, 1413 uS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm / one point offset: 0.00 uS/cm Salinity Calibration: one point with MA9066 salinity calibration solution Temperature Calibration: no temperature calibration Temperature Compensation: Automatic, -5.0 to 100.0°C (-23.0 to 212.0°F) or manual from -20 to 120°C (-4.0 to 248.0°F) or NO TC without temperature compensation Conductivity temperature coefficient: 0.00 to 6.00 % / °C (EC and TDS only) | Default value: 1.90 % / °C TDS factor: 0.40 to 0.80 / Default value: 0.50 EC Probe: MA815D/1, (4 ring) Temperature probe: Built-in temperature sensor Logging: Maximum 1,000 samples (max. 100 lots) / on demand, 200 samples; on stability, 200 samples / interval logging, 1000 PC Connectivity: 1 micro USB port Battery type: 3 X 1.5V alkaline AA (included) Battery life: Approx. 200 hours of use Auto-off: Selectable 5, 10, 30, 60 min. or off Environment: 0 to 50°C / 32 to 122°F; max RH 95% Dimensions: 200 x 85 x 50 mm (7.9 x 3.3 x 2.0 inches) Casing: IP67 Weight: .26 kg / 0.58 lbs (with battery) Warranty: 2 years, Meter * Absolute conductivity (or TDS) is the conductivity value without temperature compensation
  • Download

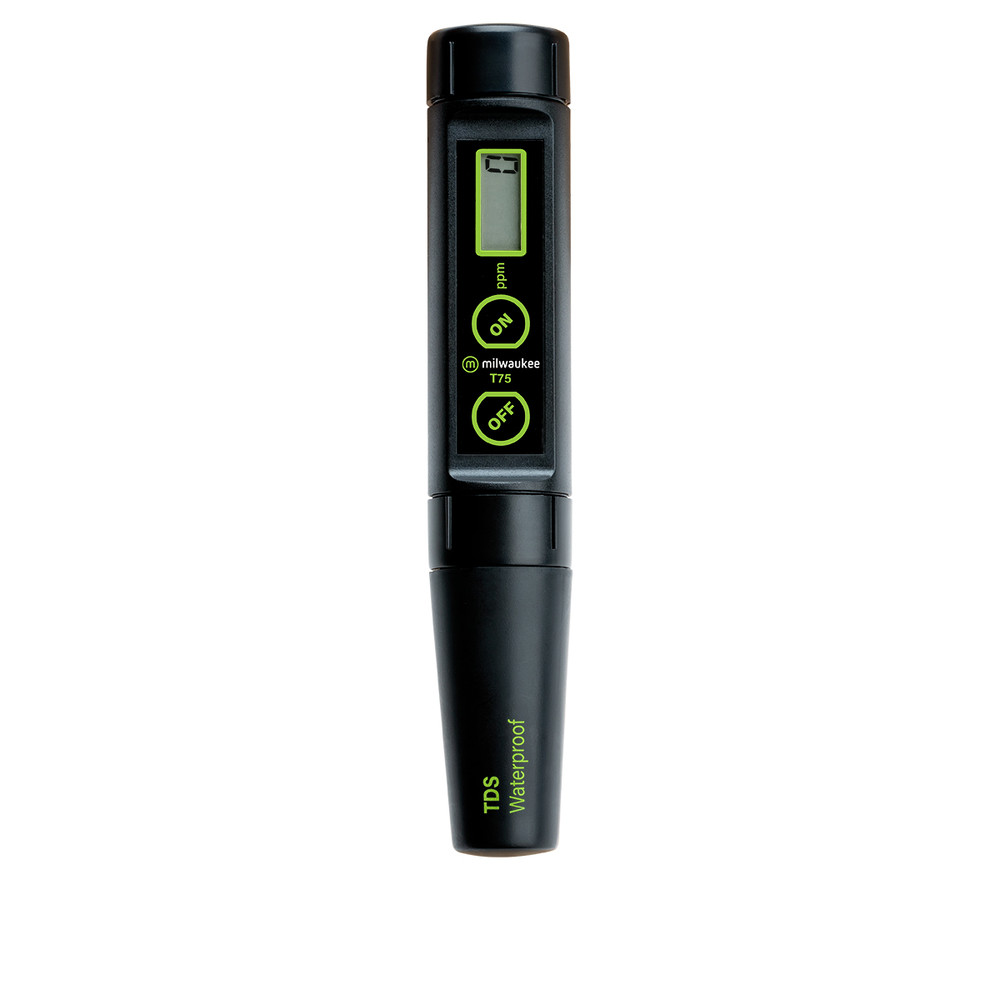

Code : T75

T75 Waterproof Low Range Total Dissolved Solids Pen

T75 Waterproof Low Range Total Dissolved Solids Pen (TDS) T75 Waterproof Total Dissolved Solids (TDS) Pen is designed for, aquariums, aquaculture, education, water conditioning and many other applications. The T75 helps you make sure that your fish have the right TDS balance to help them stay healthy. TDS also help keep filters up-to-date and clean for water filtration. Keep TDS in your target range to help your achieve better results.   SPECIFICATIONS Range: 0 to 1999 ppm (mg/L) Resolution: 1 ppm (mg/L) Accuracy: ±2% Full Scale Typical EMC Deviation: ±2% Full Scale Calibration: Manual, at 1 point through trimmer Replaceable Probe: MA73075 Temperature Compensation: Automatic from 0 to 50°C (32 to 122, with ß=2%/°C) TDS Factor: 0.5 scale Environment: 0 to 50°C / 32 to 122°F; max RH 100% Battery Type: 3 x 1.5V Alkaline (included) Battery Life: Approx. 250 hours of continuous use Calibration Solution: M10032B (25 sachets 20 mL ea.) Dimensions: 6 x 1.2 x 0.95 inches (180 x 65 x 32 mm) Weight: 3.5 ounces (0.99 g)
  • Download
Code : T76

T76 Waterproof High Range Total Dissolved Solids Pen

T76 Waterproof High Range Total Dissolved Solids Pen T76 Waterproof High Range Total Dissolved Solids (TDS) Pen is designed for, aquariums, aquaculture, education, pools, water conditioning and many other applications. The T76 helps you make sure that your fish have the right TDS balance to help them stay healthy. TDS also help keep filters up-to-date and clean for water filtration or pools. Keep TDS in your target range to help your achieve better results.   SPECIFICATIONS Range: 0 to 9990 ppm (mg/L) Resolution: 10 ppm (mg/L) Accuracy: ±2% Full Scale Typical EMC Deviation: ±2% Full Scale Calibration: Manual, at 1 point through trimmer Replaceable Probe: MA73076 Temperature Compensation: Automatic from 0 to 50°C (32 to 122°F), with ß=2%/°C TDS Factor: 0.5 scale Environment: 0 to 50°C / 32 to 122°F; max RH 100% Battery Type: 3 x 1.5V Alkaline (included) Battery Life: Approx. 250 hours of continuous use Calibration Solution: M10032B (25 sachets 20 mL ea.) Dimensions: 6 x 1.2 x 0.95 inches (180 x 65 x 32 mm) Weight: 3.5 ounces (0.99 g)
  • Download

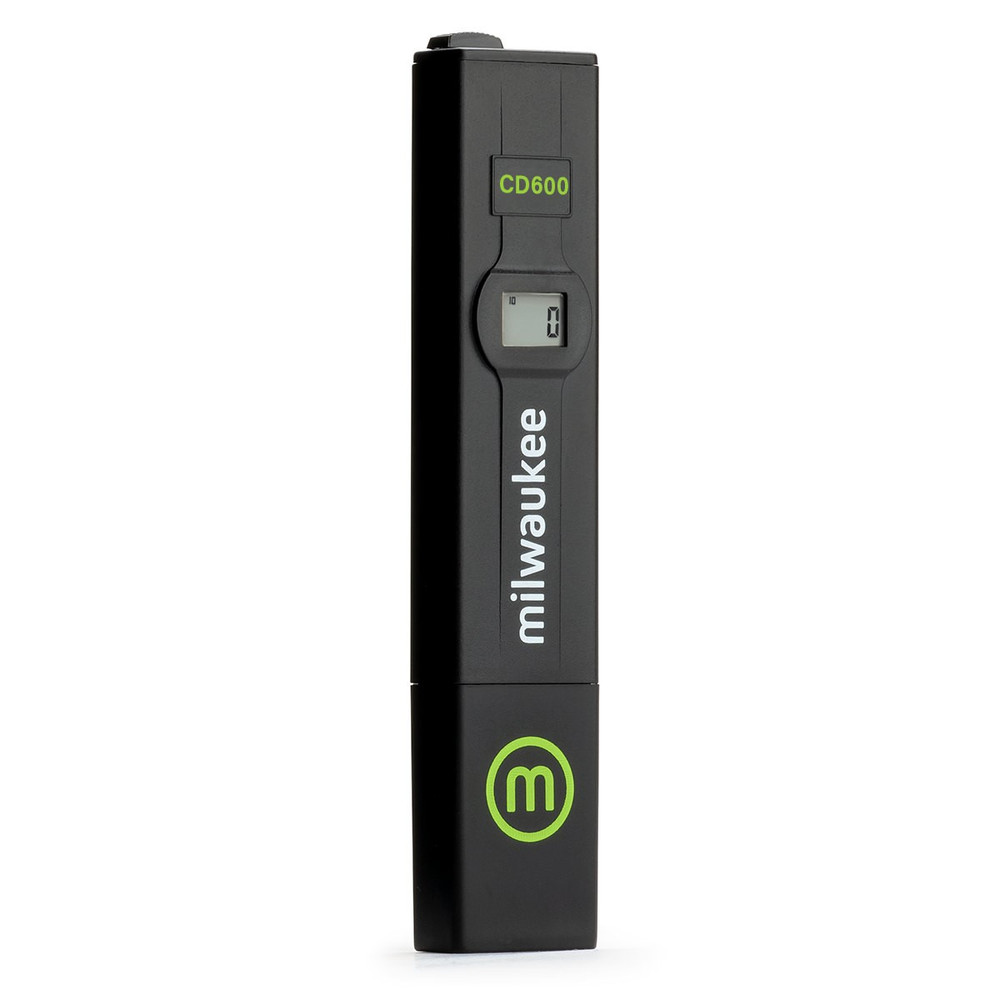

Code : CD600

CD600 Digital Total Dissolved Solids Pen

CD600 Digital Total Dissolved Solids Pen CD600 Total Dissolved Solids (TDS) Pen is designed for hydroponics, aquariums, horticulture, water conditioning and many other applications. The CD600 helps you make sure that your plants are receiving the right amount of nutrient or helps you keep your filters up-to-date and clean for water filtration. Keep TDS in your target range to help your achieve better results.   SPECIFICATIONS Range: 0 to 1990 ppm Resolution: 10 ppm Accuracy: ±2% Full Scale Typical EMC Deviation: ±2% Full Scale Calibration: Manual, at 1 point through trimmer Temperature Compensation: Automatic from 5 to 50°C, with ß=2%/°C Environment: 0 to 50°C / 32 to 122°F; max RH 100% Battery Type: 4 x 1.5V Alkaline (included) Battery Life: Approx. 350 hours of continuous use Calibration Solution: M10032B (25 sachets 20 mL ea.) Dimensions: 6 x 1.2 x 0.95 inches (180 x 65 x 32 mm)
  • Download
Code : CD610

CD610 Digital High Range TDS Pen

CD610 Digital High Range TDS Pen CD610 Total Dissolved Solids High Range (PPM)  Pen is designed for aquariums, pools and education and many other applications. The CD610 helps make sure that you keep your fish tank water clean and healthy. It is a cost effective tool for teacher's science labs. Keep PPM in your target range to help your achieve better results.   SPECIFICATIONS Range: 0 to 10000 ppm Resolution: 100 ppm Accuracy@20°C (68°F): ±2% full Scale Typical EMC Deviation: ±2% full Scale Calibration: Manual, at 1 point through trimmer Temperature Compensation: Automatic from 5 to 50°C (41 to 122°F), with ß=2%/°C Environment: 0 to 50°C / 32 to 122°F; max RH 100% Battery Type: 4 x 1.5V Alkaline (included) Battery Life: Approx. 350 hours of continuous use Calibration Solution: M10038B (25 sachets 20 mL ea.) Dimensions: 6 x 1.2 x 0.95 inches (180 x 65 x 32 mm)
  • Download

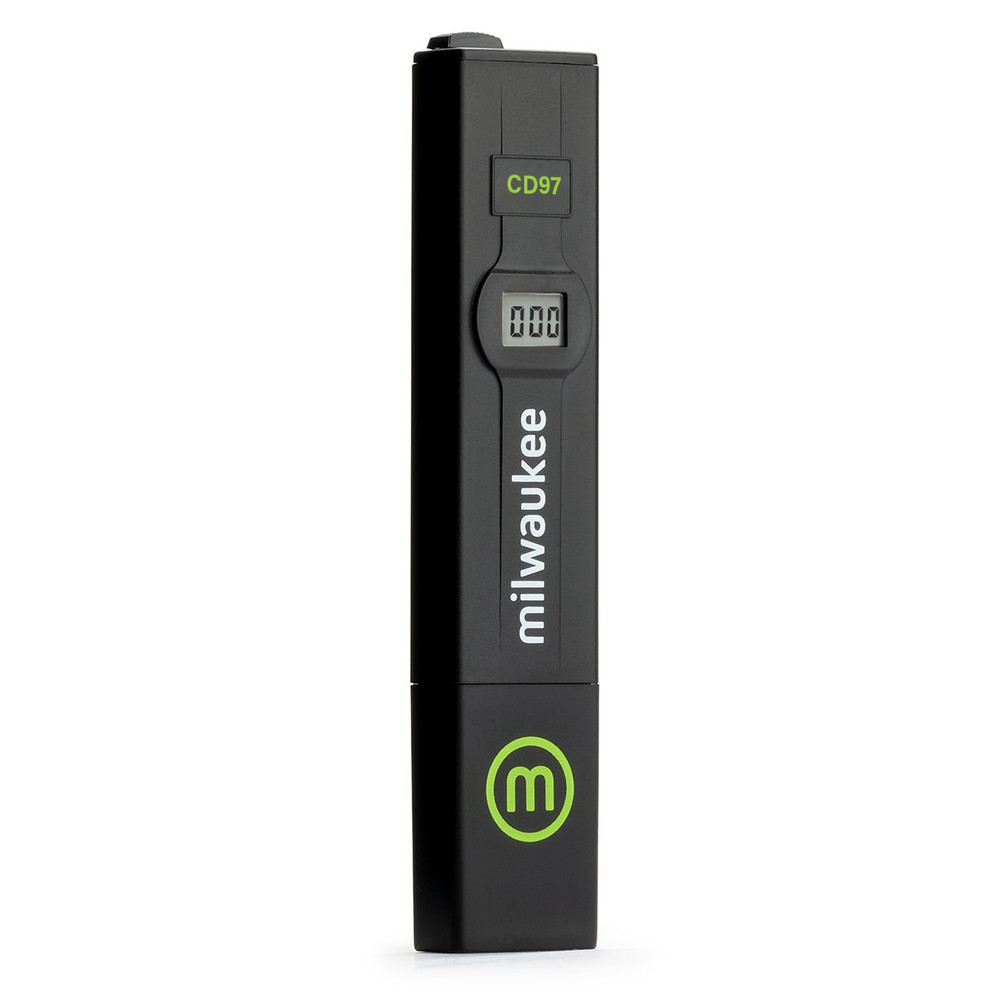

Code : CD97

CD97 Digital Low Range TDS

CD97 Digital Low Range TDS CD97 Total Dissolved Solids Low Range (PPM)  Pen is designed for water conditioning, education and many other applications. The CD97 helps you make sure that your keep your filters up-to-date and clean for water filtration and is a cost effective tool for teacher's science labs. Keep PPM in your target range to help your achieve better results.   SPECIFICATIONS Range: 0 to 999 ppm Resolution: 1 ppm Accuracy: ±10 ppm Calibration: Manual, at 1 point through trimmer Temperature Compensation: Automatic from 5 to 50°C (41 to 122°F), with ß=2%/°C Environment: 0 to 50°C / 32 to 122°F; max RH 100% Battery Type: 4 x 1.5V Alkaline (included) Battery Life: Approx. 300 hours of continuous use Calibration Solution: M10080B (25 sachets 20 mL ea.) Dimensions: 6 x 1.2 x 0.95 inches (180 x 65 x 32 mm)
  • Download
